Entry control, Ecoline

Item number (SKU):

Indgangskontrol, Ecoline

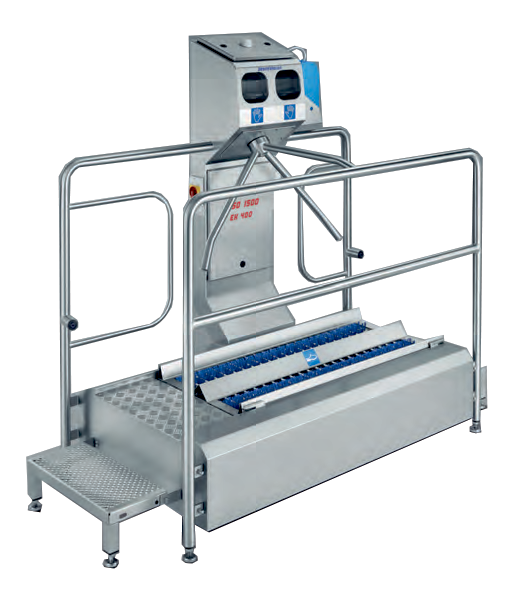

This entry control consists of a walk-through sole cleaning machine, model DLSO-SL, which comes with 2 rotating brushes, covered by a stainless steel grid, which ensures a thorough cleaning of soles.

Information

Technical specifications
Power supply 3 x 400 V/N/PE; 50-60 Hz
Performance 0.6 kW
Drainage 2″ (DN 50)
Water connection 3/4″ external thread, max. 43° C mixed water
Security and safety 16 A
Models Hand disinfection or hand soap dispenser
Protection IP 65

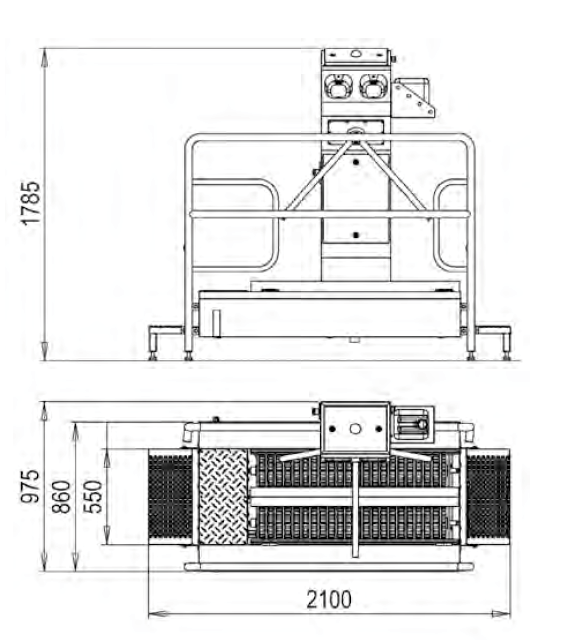

Dimensions (W x D x H in mm) (BL: Brush length)
..1100 Dimensions (W x D x H): 1700 x 975 x 1785 / BL: 700
..1500 Dimensions (W x D x H): 2100 x 975 x 1785 / BL: 1100
..2000 Dimensions (W x D x H): 2600 x 975 x 1785 / BL: 1600

About the product

An access control unit EK 400 with turnstile, which is released when both hands are registered and disinfected. Mounted on the side of the EK 400 is a container for the hand sanitizer. A multifunctional LED light simplifies the operation of the device. The machine is delivered ready for connection.

  • Adjustable dosing quantity
  • Adjustable rotation time 1-10 sec on brushes
  • LED signal indicator (red – green)
  • Cleaning/replacement of brushes can be done without the use of tools

Downloads

Datasheet
